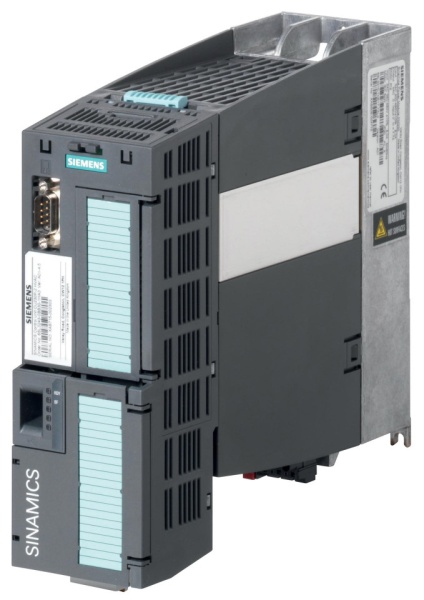

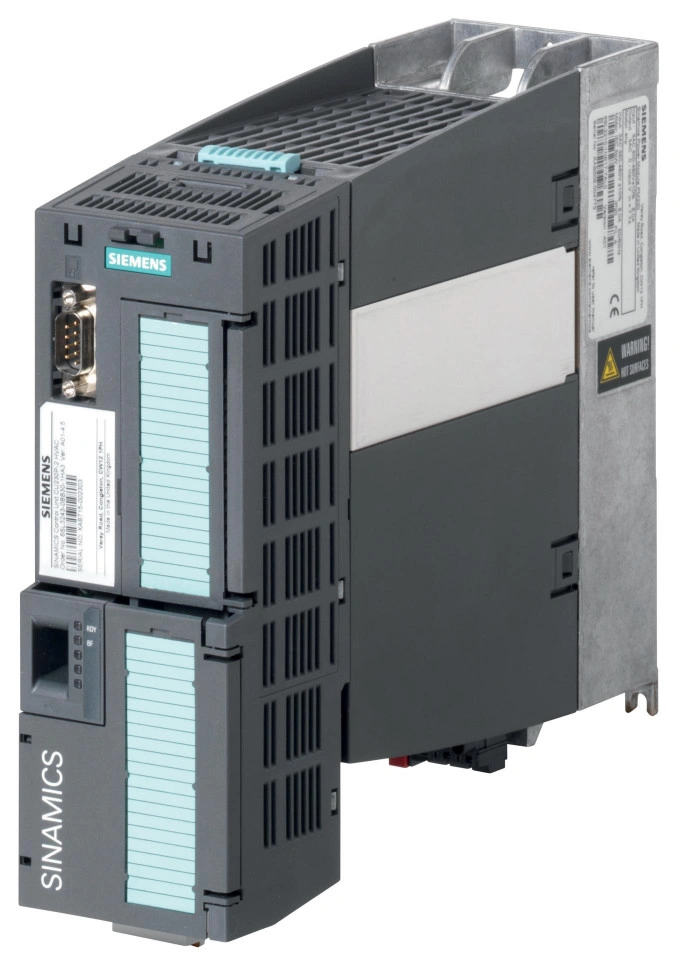

Convertizor de frecventa 0,75kW Siemens
Descriere
Variator de turatie pentru controlul optimizat din punct de vedere energetic al motoarelor pompelor, compresoarelor și ventilatoarelor.
Operating voltage 400 V
Frequency 50/60 Hz
Power output 0.75 kW
Communication Modbus/RTU , RS485/USS , BACnet MS/TP , PROFIBUS (optional) , PROFINET (optional) , CANopen (optional)
Overload capacity 110% for 57 sec. and 150% for 3 sec. every 300 sec.
Output current 2.2 A
Filter type A
Degree of protection IP20
Dimensions (W x H x D) 73 x 196 x 223 mm
Weight (net) 2.31 kg
Product conformity CE , UL , EAC , RCM
Standard EN 61800-3
