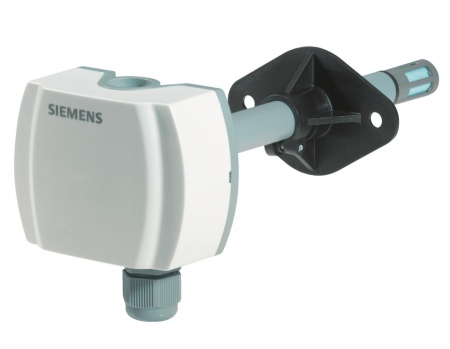

QFM2160 Senzor umiditate/temperatura Siemens
Descriere
Senzor de temperatura si umiditate pentru tubulatura in instalatiile HVAC.
Signal output humidity DC 0...10 V
Signal output temperature DC 0...10 V
Operating voltage AC 24 V, DC 13.5…35 V
Sensing element, temperature DC 0...10 V
Measuring range, temperature 0…50 °C, -35…35 °C, -40…70 °C
Measurement range humidity 0…95 % r.h.
Measurement accuracy At 15…35 °C: ±0.6 K, 23 % r.h., 30…70 % r.h.: ±3 % r.h.
Time constant Humidity: 20 s, Air v=2 m/s: 210 s
Immersion length 90…154 mm
Connection, electrical Screw terminals
Type of fixing Flange
Degree of protection IP54
Dimensions (W x H x D) 80 x 88 x 39 mm
Detalii produs
Cod produs - SKU
QFM2160
Categorie
Producator
Fisa tehnica
